Need to preheat circuit boards? Wenesco's PowerMax preheaters are designed to retrofit existing wave solder systems, replace or augment existing preheaters, and as a self-contained,stand-alone unit on your work bench.
POWER MAX preheaters utilize powerful radiant heating elements which transfer heat to a target, one inch above the preheater surface, at a rate of 3 deg C/sec
All preheaters include an accurate digital thermostat that displays current temperature and set point The temperature range is 25C to 300C. An illuminated on- off switch, fuse, and a 5-ft line cord are standard.

Square Preheaters

Heated Area (in)	Voltage	Power	Model number, no rails	Model number with rails	Digital thermostat
6 X 6	120/240 1 ph	1000 W	pmx 66	pmx 66r	built in or remote
12 x 12	240 1 ph	3000 W	pmx 1212	pmx 1212r	built in or remote
18 x 18	240/480 1 ph	6000 W	pmx 1818	pmx 1818r	remote
24 X 24	240/480 1-3ph	12000 W	pmx 2424	pmx 2424r	remote

Rectangular Preheaters

Heated Area (in)	Voltage	Power	Model number, no rails	Model number with rails	Digital thermostat
12 X 18	240 1-3 ph	4000 W	pmx 1218	pmx1218r	remote
12 X 36	240 1-3 ph	9000 W	pmx 1236	Check with us	remote
18 X 36	240/480 1-3 ph	12000 W	pmx 1836	Check with us	remote
Many more sizes are available. Call Wenesco for details.

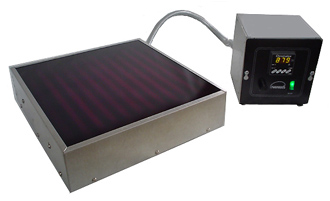

Model PMX 1212 radiant panel preheater shown with remote digital thermostat

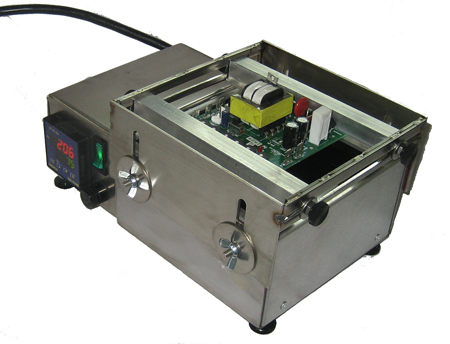

Model PMX 66R digital preheater with built-in adjustable rails

Special Preheaters

Wenesco can furnish custom made preheaters for special preheat applications. Heat can be directed to selected areas using square, rectangular, or round nozzles sized to those areas We can also design adjustable or fixed pcb holders to hold your pcb in the desired position over the preheater

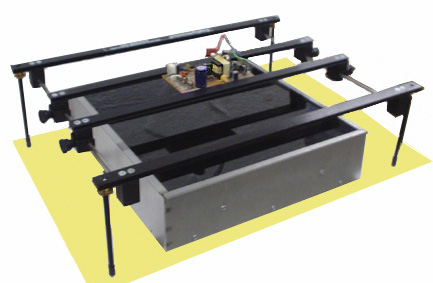

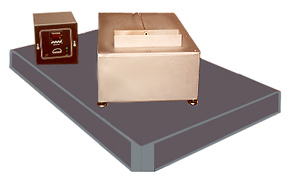

Model PMX 1212 preheater shown with separate adjustable rails	Special preheater with a 6" x 2" heated area
