Heated presses are used to produce:
bullet Chalcopyrite Semiconductors: Copper Indium Gallium Selenide
bullet photovoltaic thin film solar cells
bullet flexible substrates polymer based
bullet transparent conducting oxides (TCO) TCO is indium-tin-oxide (ITO)
bullet flexible transparent conductors
bullet printing/coating ,using solution-based inks
bullet Ink-based thin film battery applications

      all of which are widely utilized in the manufacture of

bullet OLED Displays & Lighting
bullet Touch screen devices
bullet Smart windows
bullet PV modules
bullet Thin film lithium-ion batteries

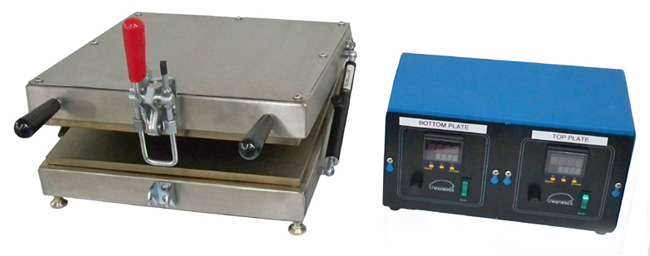

MANUAL HOT PRESS
Wenesco Model H1515MHPHot Press will be used to form semi-conductors in the production of solar cells.  It is designed to deliver precise heat, cooling, and pressure between twin, parallel 15in X 15in X 1/2 in (381 X 381 X 13mm) anodized aluminum platens.  The platens are ground flat to .005 inches and are adjustable up to 1 inch apart, (Stainless steel platens are optional.)

Platen Temperatures are controlled to 400C with dual digital thermostats mounted in a single remote control cabinet.  Power required: 240VAC, 7500 W

Overall size: 16 in X 16 in X 6 in (406 X 406 X 152mm), weight: approx 50 lbs.

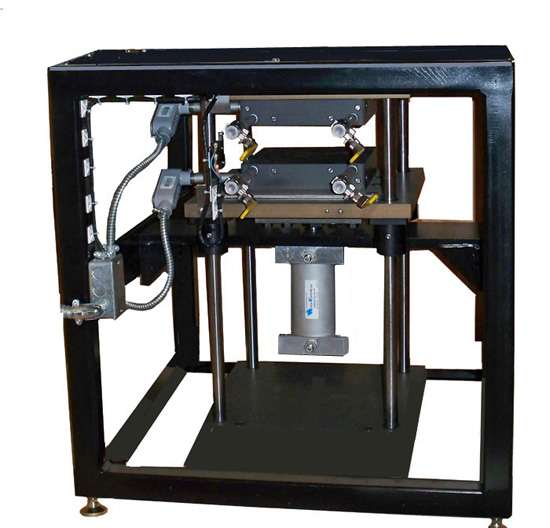

PNEUMATIC HOT PRESS
Wenesco Model H0909HP Hot Press is designed to deliver precise heat, cooling and pressure between twin 9in X 9in (228mm) X 2 in anodized aluminum platens.
The platens are ground flat to .005 inches.

Platen Temperatures are controlled to 400C with dual digital ramp-soak thermostats mounted in a single remote control cabinet. A pneumatic cylinder is used with a precision pressure regulator to closely control pressure from 0 to 200 PSI to the platens, (4 in max opening) (101mm).   Power required: 240VAC, 3600 W.

Overall size: 28 in X 28 in.(712mm), weight: approx 70 lbs.
